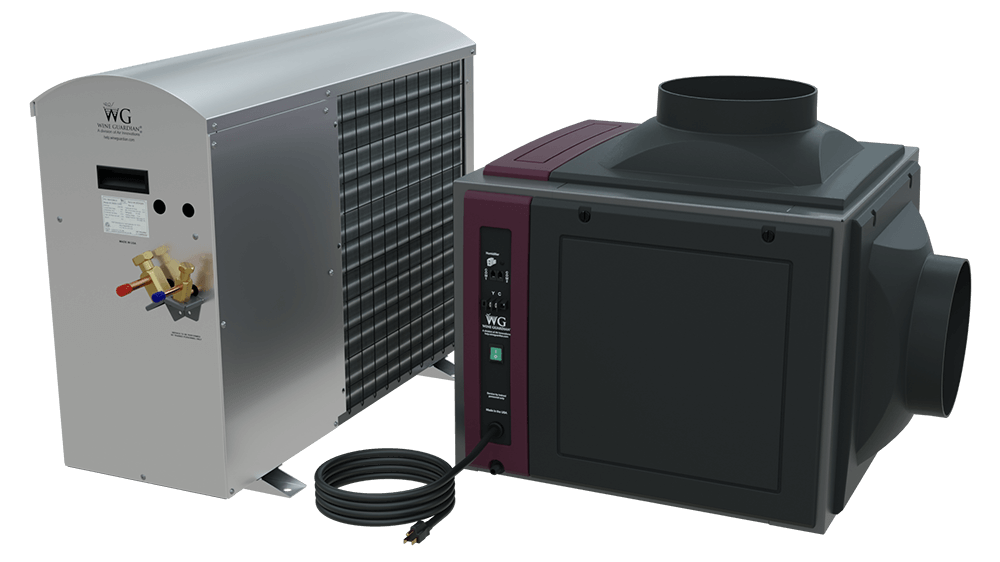

Ducted split Wine Guardian system for cooling large residential or commercial wine cellars. Split systems offer flexibility in location and are ideal when space for a self-contained system is limited, condenser air is difficult to exhaust or duct runs exceed allowable lengths.

Options and sizing support are available. Contact us at 866-973-1100 or info@vineyardwinecellars.com.

Description

STANDARD FEATURES

• Fan coil unit and condensing system
• Condensing unit includes: high and low refrigerant pressure switches, low ambient protection, refrigerant sight glass, and filter drier
• Remote user interface controller
• Multiple capacities for cellars of any size and configuration
• Commercial-grade, corrosion-resistant components and all–aluminum frame for long-term durability
• One supply and one return duct collars
• Multiple supply air openings for installation flexibility (for up to 5 outlets)
• High static pressure fans for extended lengths of ductwork
• Warranted to two years (parts) and one year (labor)
• Contractor installation recommended
• Factory service hotline support
• Made in the USA
• Up to 15,785 BTUH

Specifications

Condenser Specs

• Room Capacity: 2500-8500 cu. ft.
• Width: 12"

• Length: 34"
• Height: 26"
• Electrical: 230v/1ph/60hz
