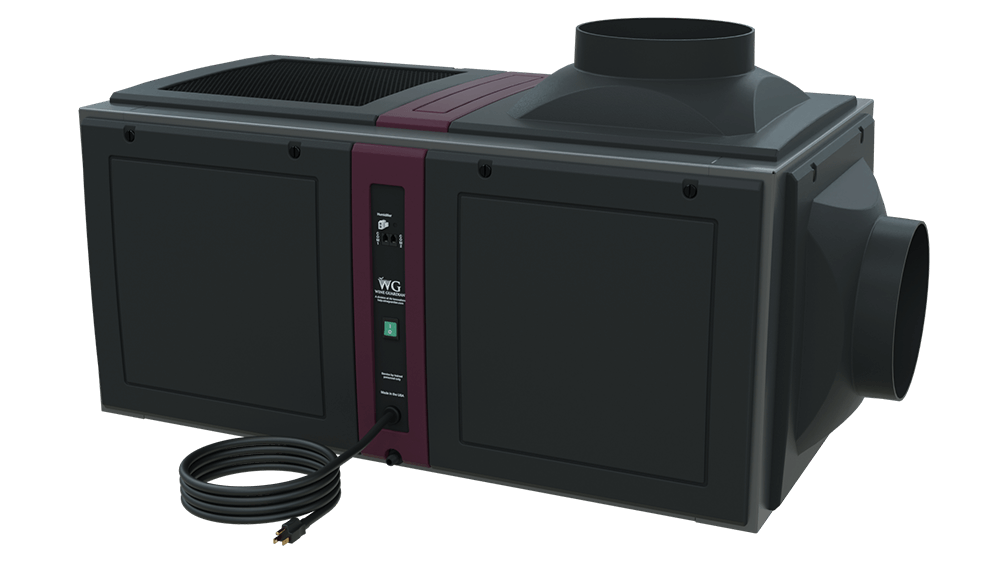

Self-contained, ducted Wine Guardian system for cooling large residential or commercial wine cellars. The entire unit is installed outside of the wine cellar. These systems are compatible with integrated or stand-alone humidifiers.

Options and sizing support available. Contact us at 866-973-1100 or info@vineyardwinecellars.com.

Description

STANDARD FEATURES

• New durable UL-rated composite material removable panels and duct collars
• Captive quarter-turn fasteners
• New larger chassis with added insulation
• Heavy duty double wall insulated duct collars
• A bold and unique design with a distinctive Sentinel Series color scheme
• Coated coils on the evaporator
• Bundled options for ease of application
• Multiple supply air openings for installation flexibility

• Removable control panel for easy access
• Remote user interface control system
• One supply and one return duct collar
• High static pressure fans for extended lengths of ductwork

• All aluminum evaporator and condenser coils for superior corrosion resistance.
• Completely self-contained design
• Factory tested prior to shipment
• Certified by ETL to UL, Canadian, CE and other international safety standards
• Made in the USA
• Warranted to two years (parts) and one year (labor)
• Contractor installation recommended
• Up to 15680 BTUH

Specifications

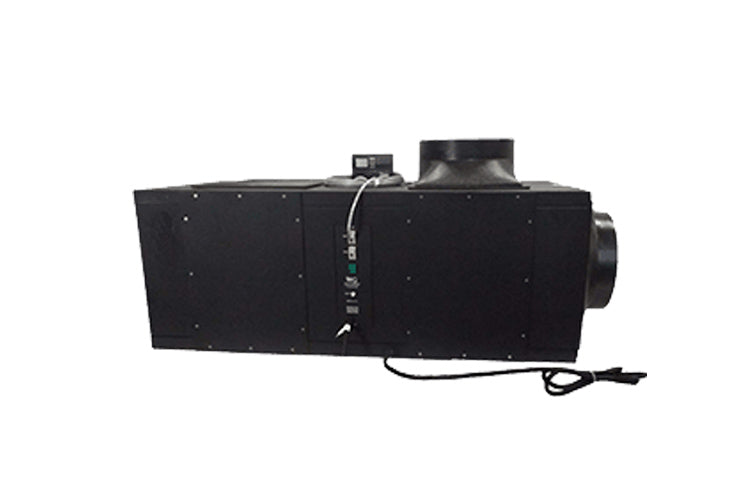

D200 Self-Contained System

• Room Capacity: Up to 1500 cu. ft.
• Width: 41.5"
• Height: 18.85"
• Depth: 22.4"
• Weight: 206lbs
• Condensate Drain: .5"
• BTU/H: 15680 @ 80-degree intake temp
• Electrical: 115v/1ph/60hz
• Item: D200


View Brochure (PDF)

View Quick Start Guide (PDF)
View Owner's Manual (PDF)

View Spec Sheet (PDF)

Options

Detailed information about the available add-on options are documented in the attached PDF file below. Please click on the link below for more information.

View Options Data Sheet (PDF)

We are only a phone call or email away should you have any questions.

Options and sizing support available. Contact us at 866-973-1100 or info@vineyardwinecellars.com.
