With their sleek design, Wine Guardian through-the-wall (TTW) wine cellar cooling units will match the unique style of today’s modern wine cellar. TTW units are perfect for small wine cellars. The innovative system offers exceptional airflow and maintains optimal temperature and humidity – all with the quietest operation in its class.

Options and sizing support available. Contact us at 866-973-1100 or info@vineyardwinecellars.com.

Description

STANDARD FEATURES

• The only through-the-wall system that displays both temperature and humidity and controls temperature
• Quiet and efficient operation
• EasyMount™ one-piece wall bracket and support frame included
• Commercial-grade, corrosion resistant components and an all-aluminum frame for long-term durability
• Now available with a heater option

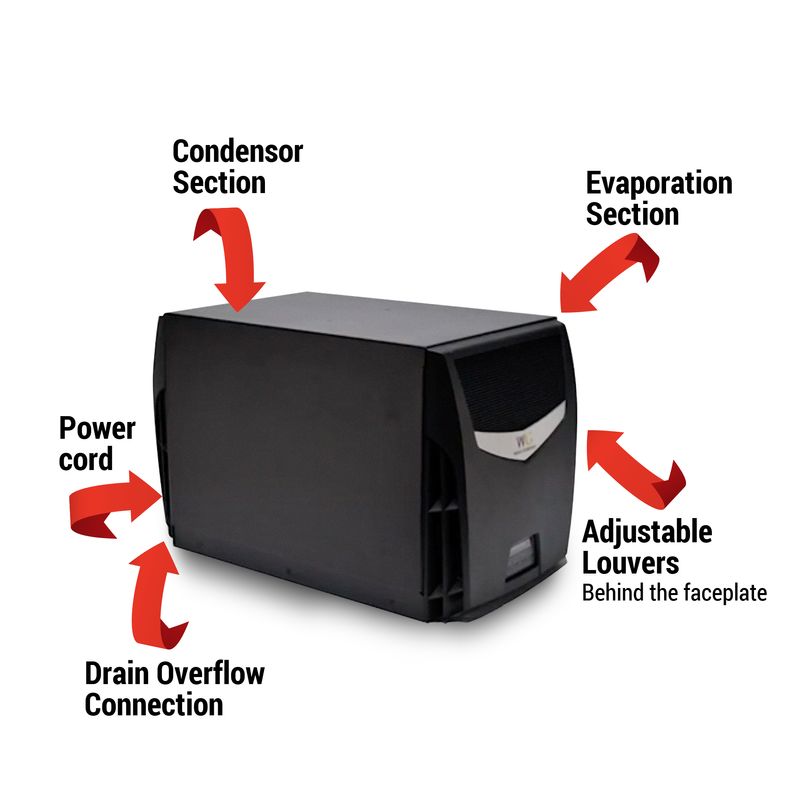

• Integrated condensate evaporation system
•  Drain overflow connection
• Aluminum, corrosion-resistant cooling coil
•  Power cord connections on both sides of system to connect power from front or back of unit

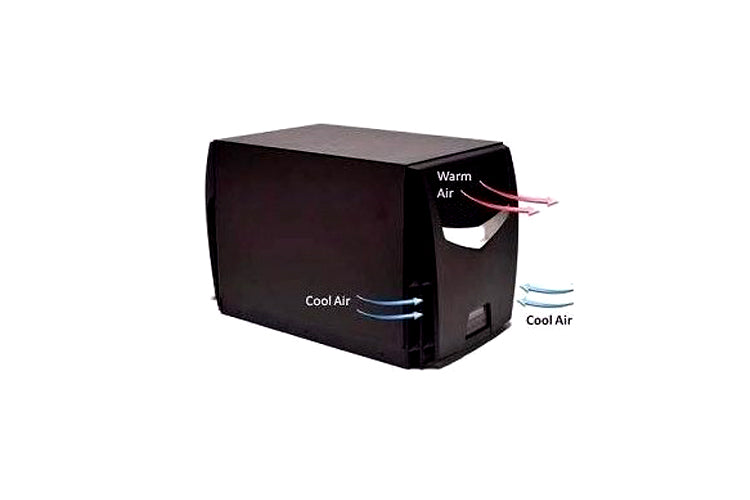

• Engineered for ideal airflow, including adjustable louvers for optimal cellar air circulation

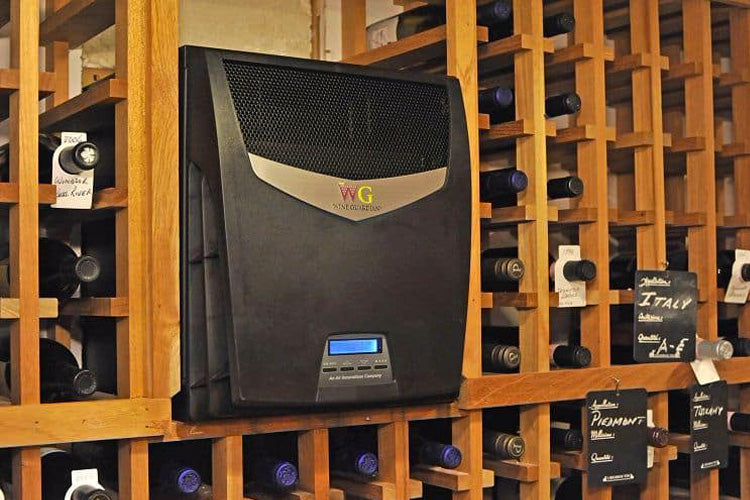

• Can be mounted flush with the wall or racking
• 1130 BTU/H

Specifications

• Width: 14.25"
• Height: 15 7/8"
• Depth: 25"
• Weight 60lbs
• Room Capacity: Up to 600 cu. ft.
• DBA at 3 feet: 55
• BTU/H: 1130
• Full Load AMPS: 5
• Electrical: 115V/1ph/60hz
• Item: TTW009

View Brochure (PDF)

View Quick Start Guide (PDF)

View Owner's Manual (PDF)

View Spec Sheet (PDF)

Options

Detailed information about the available add-on options are documented in the attached PDF file below. Please click on the link below for more information.

View Options Data Sheet (PDF)
