Description

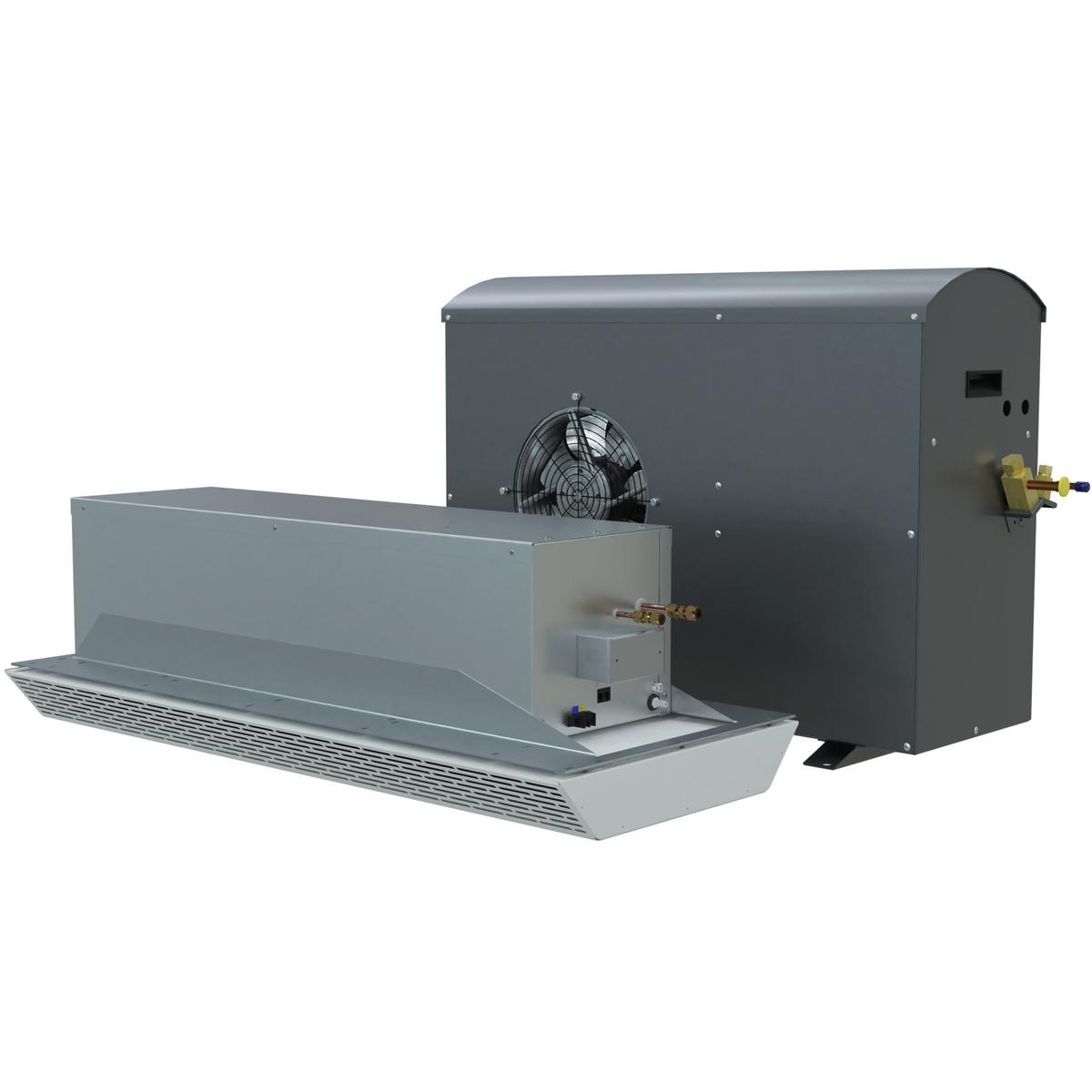

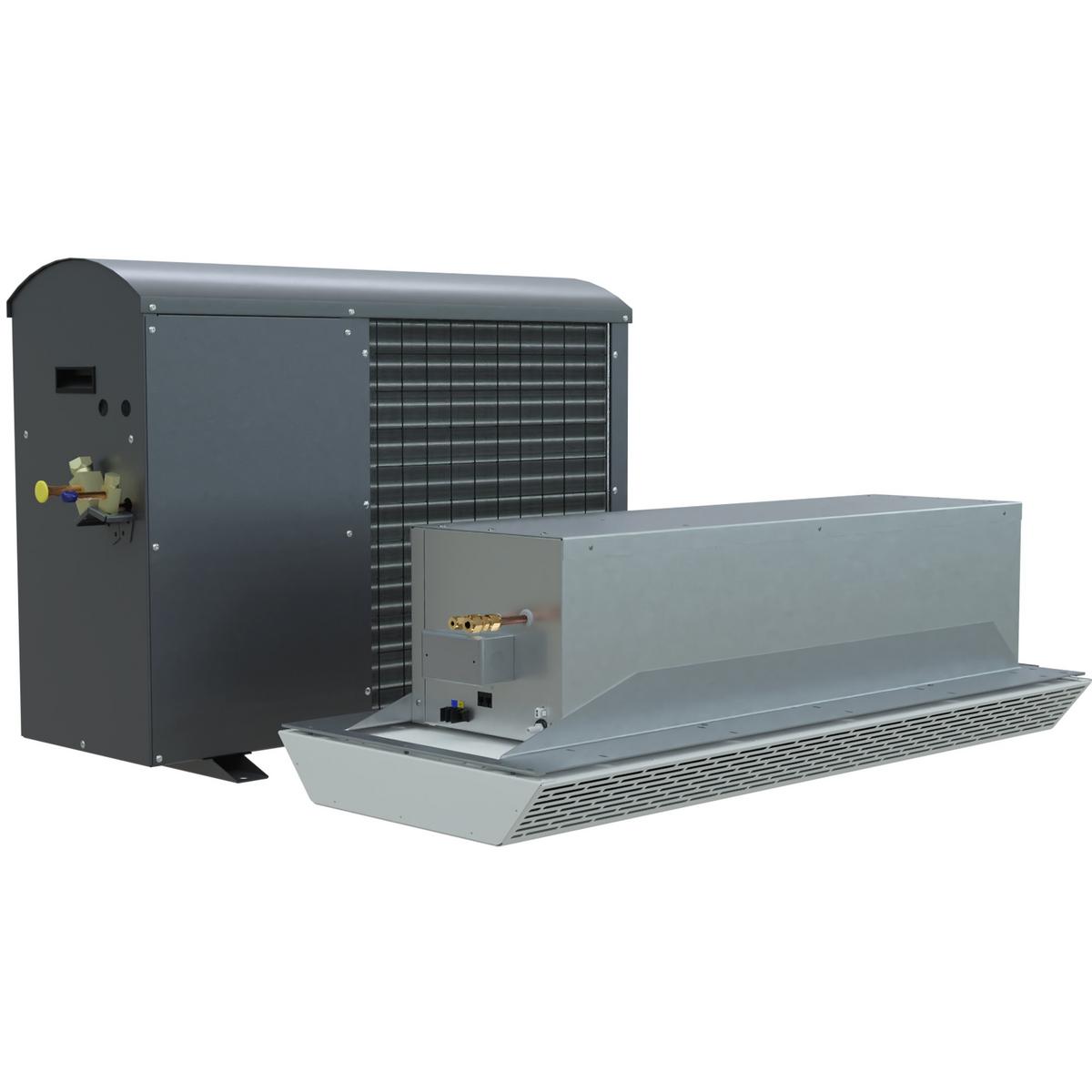

The CS025 ceiling mount wine room cooling unit is a quiet, split wine conditioning system that is ideal for small- to mid-size wine rooms with no space to install a traditional unit. This unit was designed specifically for ceiling-mounting and fits comfortably between standard joist construction— making it ideal for applications such as a wine storage display with living space around it or an all-glass wine room. The maximum capacity for the CS025 ceiling mount wine cooling system is 2,900 BTU/H.

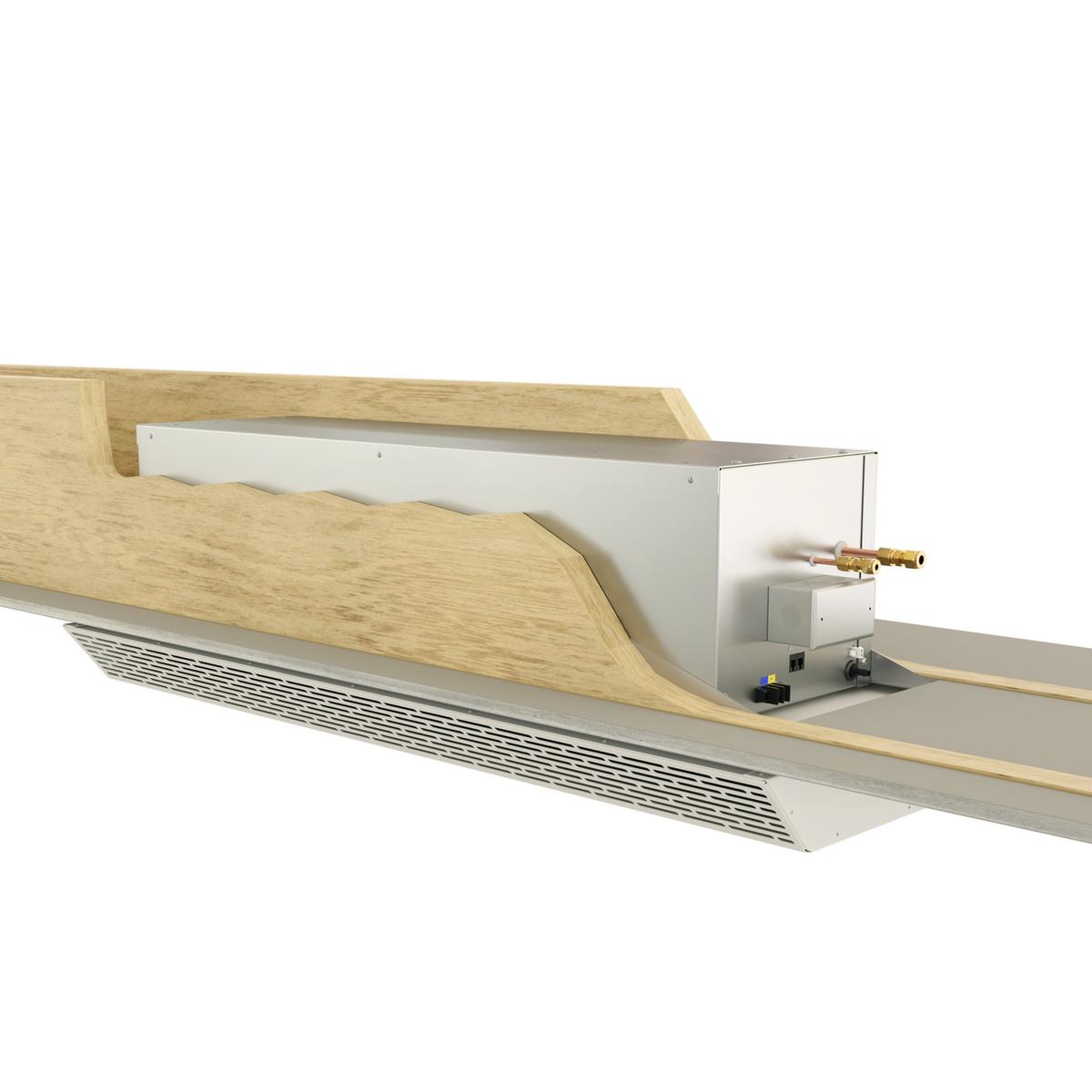

• Designed specifically for recessed ceiling mounting
• Lightweight and corrosion proof construction
• The grill can be painted to match the wine cellar
• Includes and advanced condensate removal system

Specifications

• Model: CS025

• Power (Evaporator): 1.5 amps, 115 volts
• Power (Condenser): 8 amps, 208/230 volts
• Cooling Capacity @ 70 F: 2900/2370 BTUH
• Rated Air Flow 140 CFM
• Weight Evaporator: 51 lbs.
• Weight Condenser: 75 lbs.
• Dimensions Evaporator(L x W x H): 36.5" x 10.2/18.1" x 9.6/12.7" (see drawings for clarification)
• Dimensions Condenser(W x L x H): 12.3" x 34" x 26.07"
• Condensate Drain Connections: .5"
• Safety: ETL certified
