Made in the USA

Typically ships within 1-2 weeks

Limited Warranty

Options and sizing support available. Contact us at 866-973-1100 or info@vineyardwinecellars.com.

Specifications

    • Capacity: 1886 BTUH @ 55F
    • Size: 18w x 16 1/2d x 10 1/2h (in)
    • Weight: 60 lb
    • Power/Rating: 115V AC / 60 Hz
    • Compressor Amps:
      • Running: 3.6 Amps
      • Startup: 22.2 Amps
      • Total Watts: 319
      • Requires: Dedicated 15-Amp Circuit
      • Recommended: Surge Protector
      • Decibels: 54 dBA (Rear)

    Installation Demo

    Description

    1886 SENSIBLE BTUH @ 55F. CellarPro's 1800XTS-ECX wine cooling units (1/5 Ton Nominal) were engineered to provide maximum cooling performance for small wine cellars up to 400 cubic feet.*.

    Performance testing shows that this compact unit maintains optimal cellar temperature and humidity conditions more effectively than similar units from competing brands. 1800XTS-ECX units use energy-efficient EC fans and are quieter than comparable units from other brands. Visit our Learning Center for data tables, performance charts and product comparisons among different brands.

    CellarPro 1800XTS-ECX units are sized to replace Breezaire 2200 and Wine-Mate 2500 cooling units. Please confirm equivalent dimensions and airflow prior to purchase.

    Our cooling units are designed to be used in properly-constructed wine cellars that are adequately insulated, airtight and sealed with a vapor barrier. In improperly-constructed cellars, the cooling unit will create excess condensation, leading to damage and premature failure of your cooling unit (not covered by warranty).

    Features

    NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro's 1800XTS-ECX cooling unit is the most powerful in its class, with maximum BTUH and cooling capacity for wine cellars up to 400 cubic feet. 1800XTS-ECX units are 30% more powerful than CellarPro 1800XT units, and also louder.

    All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar. Designed for indoor use only, 1800XTS-ECX units can operate in environments ranging from 95F to 40F out of the box.

    Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar.

    • Now with energy-efficient EC Fans on both the cold and hot sides, save $39.02 in annual energy costs vs AC fans (assumes 75% runtime and $0.15/kWh)
    • This unit offers a choice of top or rear hot exhaust. If the unit's location does not provide sufficient room for airflow, you may need to purchase a rear duct kit.
    • Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
    • Extra-large coils generate maximum cooling power.
    • Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.

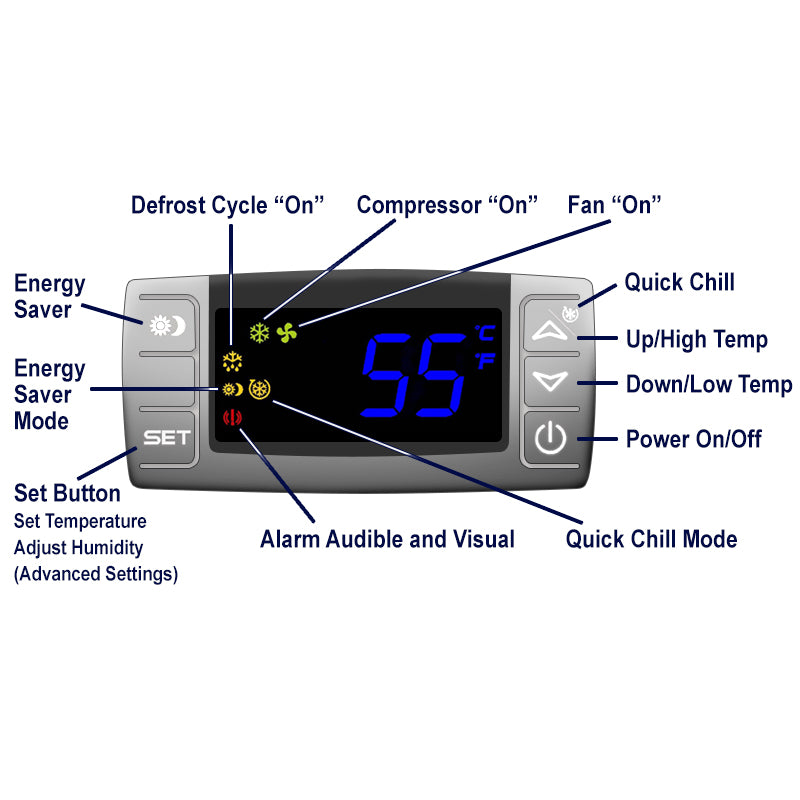

    • Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade.
    • Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
    • Temperature set point range is 47F to 62F when the cooling unit is properly sized.
    • Unit operates with minimal vibrations and less noise than comparable units from competitors.
    • Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
    • 8-foot power cord exits from the rear and plugs into standard 110V receptacles.
    • Common dedicated 15-amp circuit is required to power the unit.
    • 3-amp electric receptacle is provided to run a small lamp.
    • Removable steel case provides access to the internal components for servicing and repair.
    • CellarPro's 5-Year Standard Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
    • An optional Enhanced Warranty (#1835) is available for additional protection.
    • ETL Tested and Certified to rigorous UL Standards for safety.

                          Configurations

                          • On the hot side, this unit intakes from the rear, and offers a choice of top or rear hot exhaust.

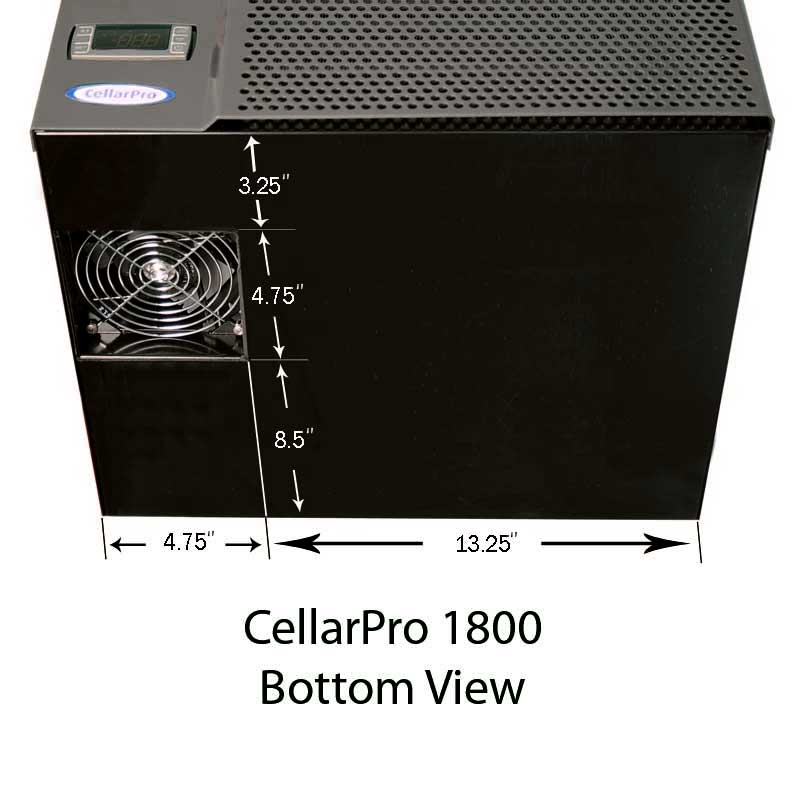

                          • On the cold side, this unit intakes from the front and exhausts from the bottom (thus the front 8 inches of the cooling unit must be inside the cellar.)
                          • The 1800XTS-ECX requires fresh air intake at the rear of the cooling unit. If sufficient space does not exist to provide sufficient airflow to the rear of the cooling unit, you may need a rear duct kit
                          • 1800 Series cooling units can be installed completely inside the wine cellar when used with our rear duct kit , which allows you to duct the supply and return airflows from the rear of the cooling unit up to 100 equivalent feet (50 feet per duct).
                          • Please note: The cold side of the 1800 Series cooling units cannot be ducted, and the hot side can be ducted with 6-inch ducting (no reductions) plus auxiliary fan support, which is included with our our rear duct kit.
                          • You must locate this unit within the cellar, with the following exception: these units can be installed directly above the wine cellar when used with our front intake hood.
                          • For installation in environments below 40F, our compressor heater modification is required.
                          • For installation in environments below 20F down to -20F, we recommend our Fan-Cycling Switch (P/N 6972) combined with our compressor heater.
                          • A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.

                          Detail Diagram of Rear Ducting

                          Please check this link - **Configuration Scenarios 1800 Series**

                          Options & Upgrades

                          Cold Temperature

                          • Compressor Heater #1727: protects the unit when installed in environments that drop below 40F down to 20F.
                          • Fan Cycling Switch #6972: supports the unit in temperatures below 20F and as low as -20F when combined with our compressor heater.

                          Duct Hoods

                          • Duct Intake Hood (Cold Side) #1932: permits the cooling unit to be placed directly above the cellar.
                          • Duct Hood (Hot Side) #7409: allows you to install the unit completely inside your cellar or in a small space with limited airflow. Includes an auxiliary fan, but no ducting.
                          • Duct Kit (Hot Side) #1439: same as the Duct Hood, this kit also includes 2 x 25-feet of 6-inch insulated (R-6) flex ducting.

                              Filters & Grills

                              • Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.

                              Remote Control & Probe

                              • Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.

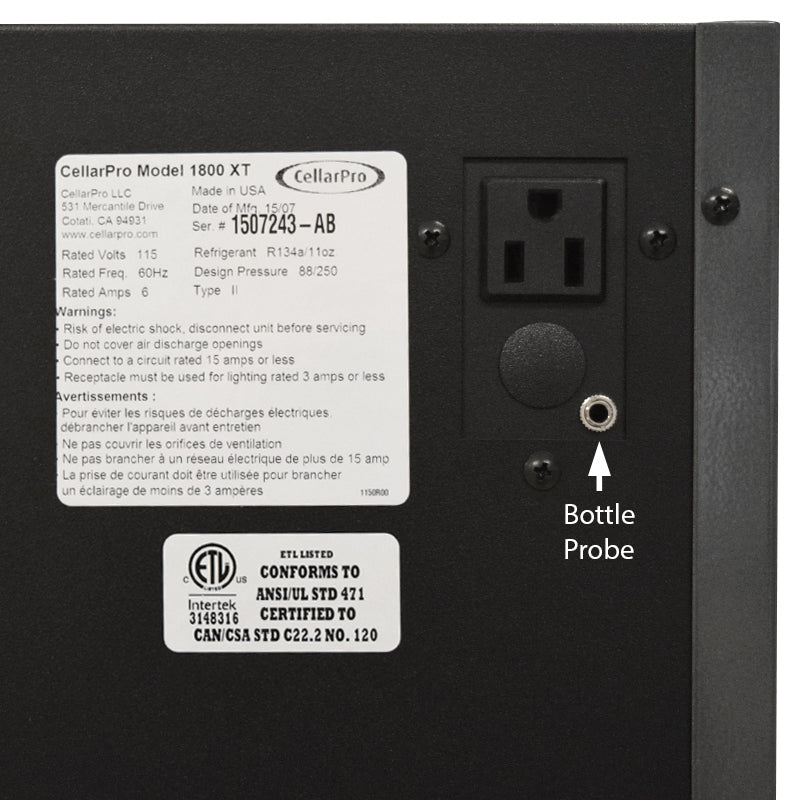

                              • Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
                              • Extension cords available in 25-foot (#1780) and 50-foot (#1781) lengths.

                              Other Options & Upgrades

                              • Condensate Drain Line: strongly recommended for wine cellar installations (but not required for wine cabinets), a drain line allows excess moisture to drain from the bottom (#7431) or rear (#1606) of the cooling unit.
                              • Condensate Drain Line plus Heating Element: combined with a drain line, we add a 100W heating element to burn of excess moisture. Available with bottom (#7432) or rear (#1709) drain lines.
                              • Power Cord Modification #1098: normally the cord exits from the rear of the cooling unit, which generally is outside the cellar; this modification moves the cord to the front of the cooling unit, so that it can be plugged into an outlet inside the cellar.
                              • Mounting Clips #1095: attached to the front of CellarPro 1800 Series cooling units, these clips are designed to be bolted to the ceiling inside the wine cabinet / cellar.

                                Click the following links for more information

                                      CellarPro 1800XTS-ECX Cooling Unit #1294

                                      CellarPro 1800XTS-ECX Cooling Unit #1294

                                      Regular price $2,050.00
                                      Regular price Sale price $2,050.00
                                      Sale Sold out
                                      Shipping calculated at checkout.

                                      Need help sizing the unit?

                                      Contact one of our cooling experts to customize your wine wall.

                                      Download a Spec Sheet

                                      View full details
